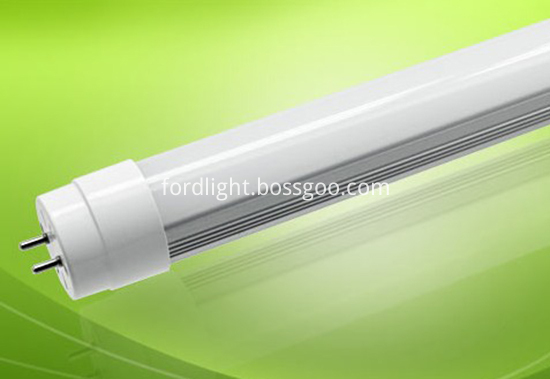

T8 LED TUBE
Features
Standard color :
Warm White : 2900-3300K
Commericial White(Daylight white ): 4000-4500K
Cold White :5700-6500K
Standard Length :
60cm ,90cm,120cm ,150cm,180cm, 240cm
Technical Specifications:
1. LED type : 3528 SMD LED
2. Wide voltage Input :AC 100-240 V
3. Frequency : 50-60 Hz
4. PF (power factor ): >0.9
5. Power Efficiency: >87%
6. Harmonic Wave : < 20
7. CRI:Ra>80
8. Use or storage temperature: -20℃---40℃
9.Life time: 30000hrs
10.Certificate: TUV,CE, FCC, RoHS & ETL approved.
11.High Lumen + High CRI + Isolated driver
T8-I series has two types of shell,frosted and transparent shell.
A. PC cover
B. PCB
C. Silicone thermal pad
D. D shaped Aluminous housing
E. PC cover of power supply
F. Built-in driver
INSTALLATION DIAGRAM
1)T8 LED tube light installation for replacing traditional fluorescent lamp
2)The T8 LED tube work under the right voltage according to the specification
Widely used in supermarkets, hotels, advanced clubs, Residential lighting, underground car parks, business offices, schools, factories, lighting boxes, building decorative lighting projects and so on.
PACKAGE
1. Adopt imported high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the T8 LED tubes are well protected in transit
3. Neutral Screen
NOTE
1.When install LED T8 tube, try to avoid the minefields, strong magnetic field and high-pressure region.
2.Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3.Install LED tubes in a well-ventilated place to ensure appropriate environmental temperature.
4.Using T8 led tube, please check the local voltage compliance with product requirements.
5.To prohibit the live wiring, do check and confirm wiring is correct and no short-circuit then power on.
6.In case of failures, do not maintain in private.
