Digital anchor puller
Product Name
Digital Anchor Dynamometer
First, the Digital Anchor Dynamometer
Product Introduction

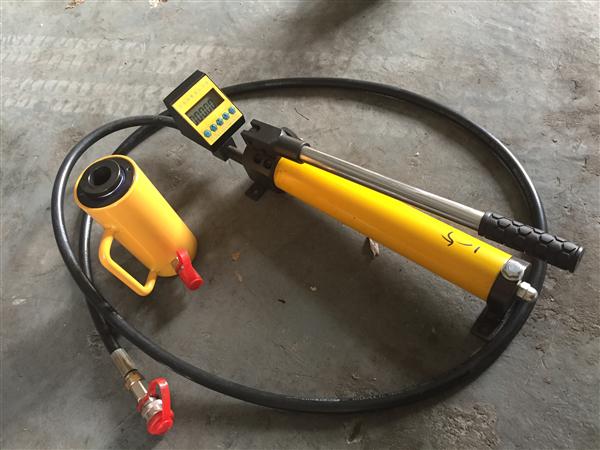

The digital anchor dynamometer is a testing tool used to measure the anchoring force of bolts. It plays a crucial role in bolt research and shotcreting theory, as well as in engineering quality inspection. The main specifications include 5 Ton, 10 Ton, 20 Ton, and 30 Ton, which are optional based on user needs.
Second, the Anchor Tension Meter, Digital Anchor Pull
Pressure Gauge Operation Method
1. Pressure Detection
Press the power key to turn it on. The display will show the initial value. Press the clear key to start measuring.
Use the peak key to switch between peak and follow values. When the display shows â–², it means the meter is in peak hold mode. In this state, the meter displays the maximum pressure recorded during the measurement.
After completing the work, press the power key again to turn off the display and shut down the device.
2. Data Storage
When the meter is in peak hold mode, press the memory key. The LCD will display SX, indicating that the current pressure data is stored in unit X.
3. Display Stored Data
When the meter is in normal measurement mode, there is no â–² symbol in the upper left corner. Press the store key to enter the stored data display mode. When SX appears, it indicates that the storage is about to be displayed. After a few seconds, the meter will show the stored value X. Then, it returns to the normal measurement mode.
4. Bolt Dynamometer, Digital Anchor Pull
Common Faults and Troubleshooting
| Fault Phenomenon | Cause of Issue | Solution |
| Pressure gauge no display | Lack of oil in the cylinder | Open the oil filling valve and refill |
| Unloading valve not tightened | Tighten clockwise | |
| Joint oil leakage | Tighten the joint | |
| Manual pump not placed horizontally | Place the pump level | |
| Pressure gauge damage | Inspect or calibrate | |
| No pressure | Manual pump lacks oil | Add oil |
| Joint oil leakage | Check joints and seals | |
| Incorrect oil or dirty oil | Change oil | |
| Hydraulic cylinder oil leakage | Replace internal cylinder seal | |
| Pressure gauge reading drops significantly | Severe joint leakage | Tighten or replace seal |
| Seal failure | Replace with same type of seal | |
| Oil is too dirty | Clean with kerosene and change oil | |
| Pump check valve poor sealing | Return to factory for repair | |
| Pressure gauge has reading but no pressure | Hose blockage | Clean hose |
| Connector blockage | Clean connector |
5. Recalibration Procedure: If the factory-calibrated anchor tension pressure gauge needs recalibration, press and hold the clear key until three vertical symbols on the left side of the display flash, then release. Press the clear key again to reset. Start pressurizing to the standard pressure gauge until it reaches the corresponding pressure (e.g., 100KN for 100KN, 200KN for 200KN, etc.). Then press and hold the switch key until the three vertical symbols flash again, release, and clear. After zero calibration, check the pressure gauge to ensure accuracy.
